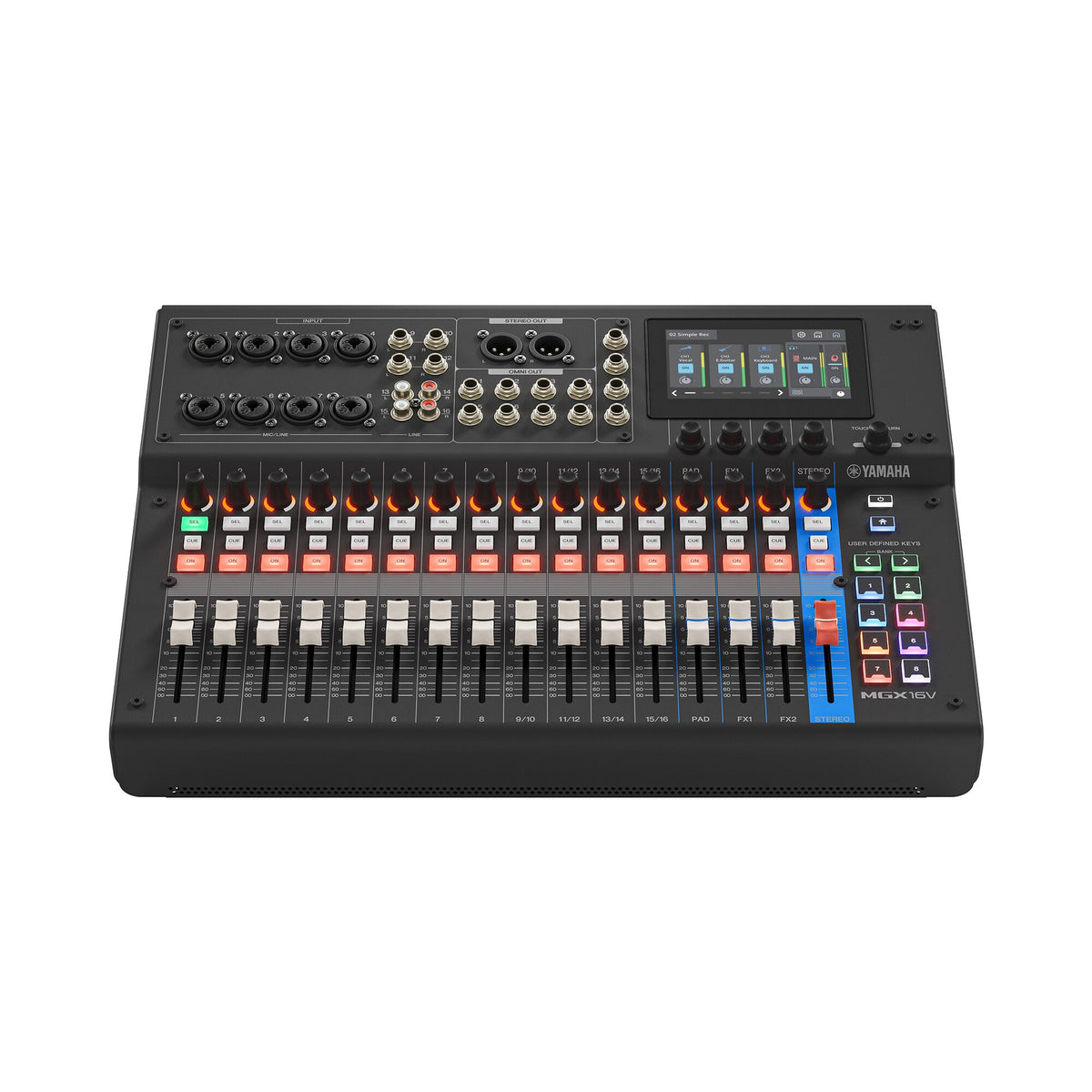

Yamaha MGX16V Digital Mixing Console With Video Interface in Black

The Yamaha MGX16V is a versatile 22-channel digital mixing console that brings professional audio mixing, recording, and video connectivity together in one compact solution. Building on Yamaha's renowned MG Series heritage, it delivers exceptional sound quality, intuitive operation, and flexible connectivity for live sound, podcasting, livestreaming, music production, and content creation.

Featuring eight premium MGX microphone preamps, a 4.3-inch touchscreen, and a 15 + 1 fader layout, the MGX16V offers hands-on control over a powerful mixing environment. Its onboard DSP provides professional effects and processing, while intelligent tools such as Auto Gain and Clip Safe help streamline setup and maintain consistent audio quality.

What sets the MGX16V apart is its integrated HDMI-to-USB audio/video interface. Capture and stream high-definition video alongside your mixed audio, with HDMI input, real-time passthrough, and support for up to 4K/60fps. It's an ideal all-in-one hub for video podcasts, gaming streams, hybrid events, and multimedia production.

With 22-in/22-out USB MAIN connectivity, standalone 16-track microSD recording, Bluetooth® audio, eight customisable sound pads, and four headphone outputs, the MGX16V offers exceptional flexibility for both studio and live applications. Despite its extensive capabilities, it weighs just 4.9kg, making it a powerful and portable production solution.

Key Features

• 22-channel digital mixing console with integrated video interface
• 8 premium MGX microphone preamps
• 15 + 1 fader configuration with 4.3-inch touchscreen
• 8 mono channels, 4 stereo channels, Sound Pad and 2 FX return channels
• 8 MIX buses and 1 STEREO bus
• HDMI-to-USB audio/video interface with capture and passthrough
• Supports video capture and passthrough up to 4K/60fps
• USB MAIN: 22 inputs / 22 outputs at 32-bit / 96kHz
• USB SUB: 2 inputs / 2 outputs at 16-bit / 48kHz
• 16-track microSD recording and 2-track playback at up to 24-bit / 96kHz
• Bluetooth® 5.0 audio input
• Built-in DSP with professional effects and processing
• Auto Gain, Clip Safe, Simple Mode and Scene Recall
• Eight customisable sound pads and four user-defined control knobs
• 2 XLR outputs, 8 TRS OMNI outputs and 4 headphone outputs
• Lightweight, rugged design weighing just 4.9kg

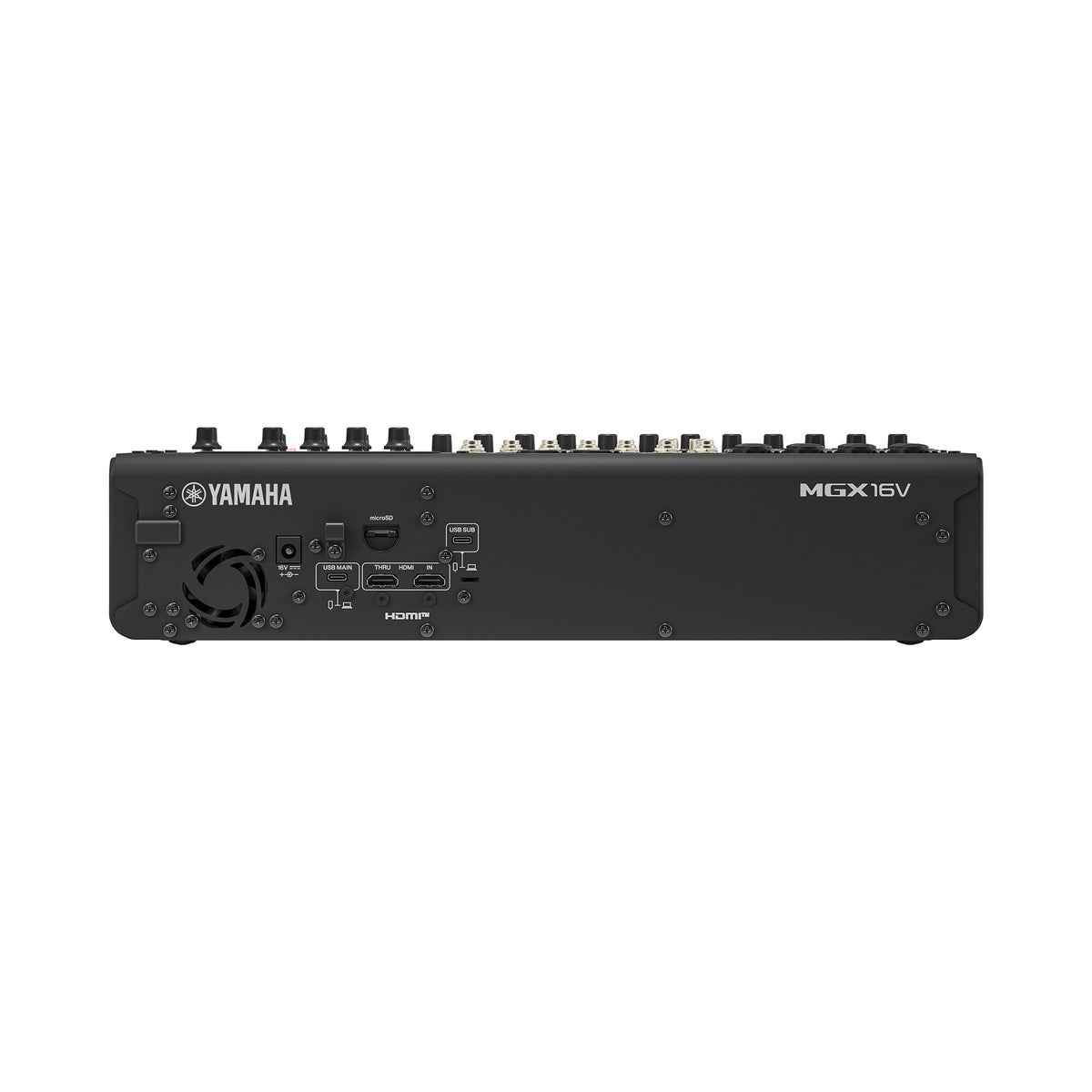

Connections

• 8 x Mic/Line combo inputs
• 4 x TRS line inputs
• 4 x RCA line inputs
• 2 x XLR outputs
• 8 x TRS OMNI outputs
• 4 x headphone outputs
• USB MAIN and USB SUB connections
• HDMI input and passthrough
• microSD card slot
• Bluetooth® audio input

Included Software & Accessories

• Steinberg Cubase AI licence
• Steinberg WaveLab Cast licence
• Steinberg Plus
• Basic FX Suite licence
• AC power adapter (PA-300C)
• Start Guide and Safety Guide
