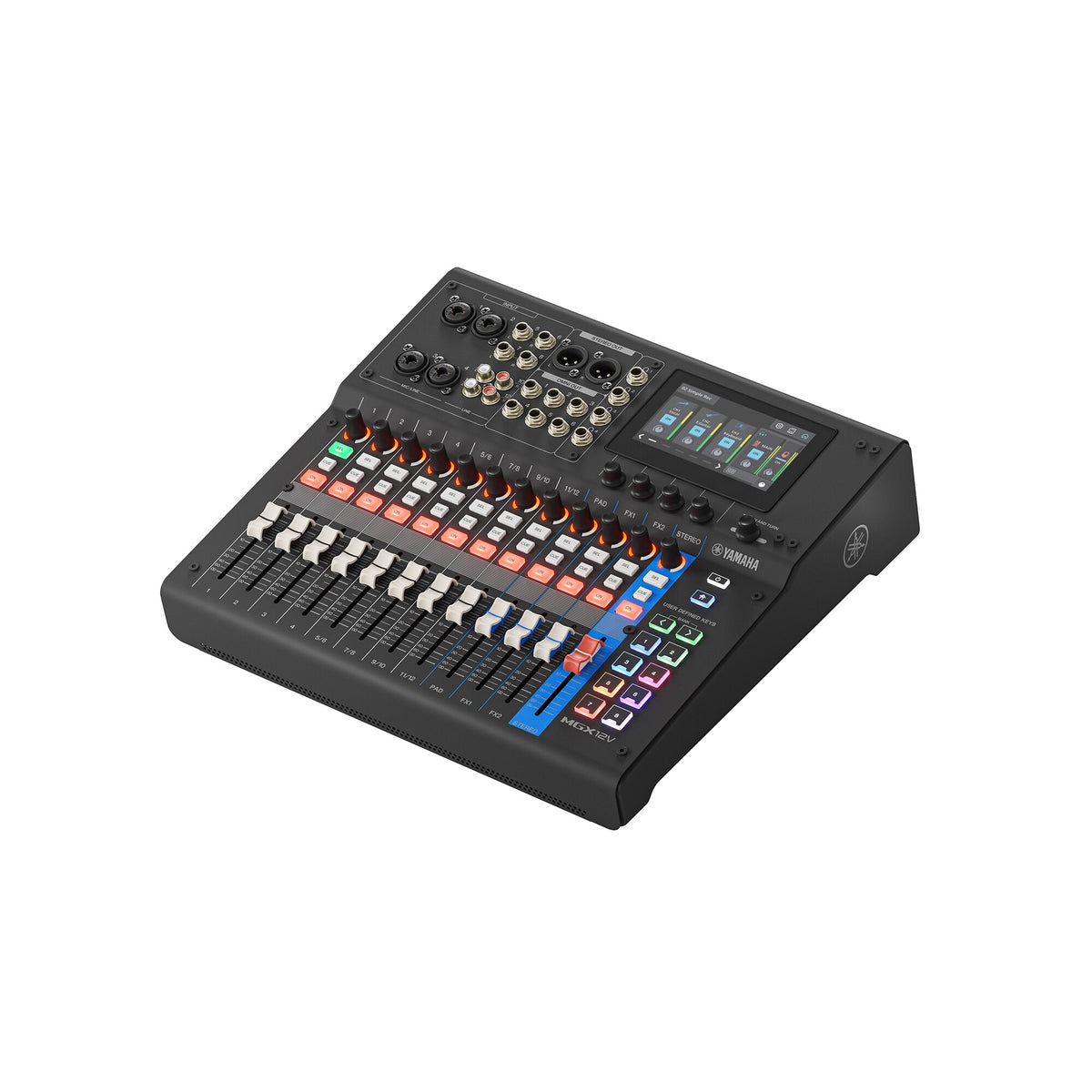

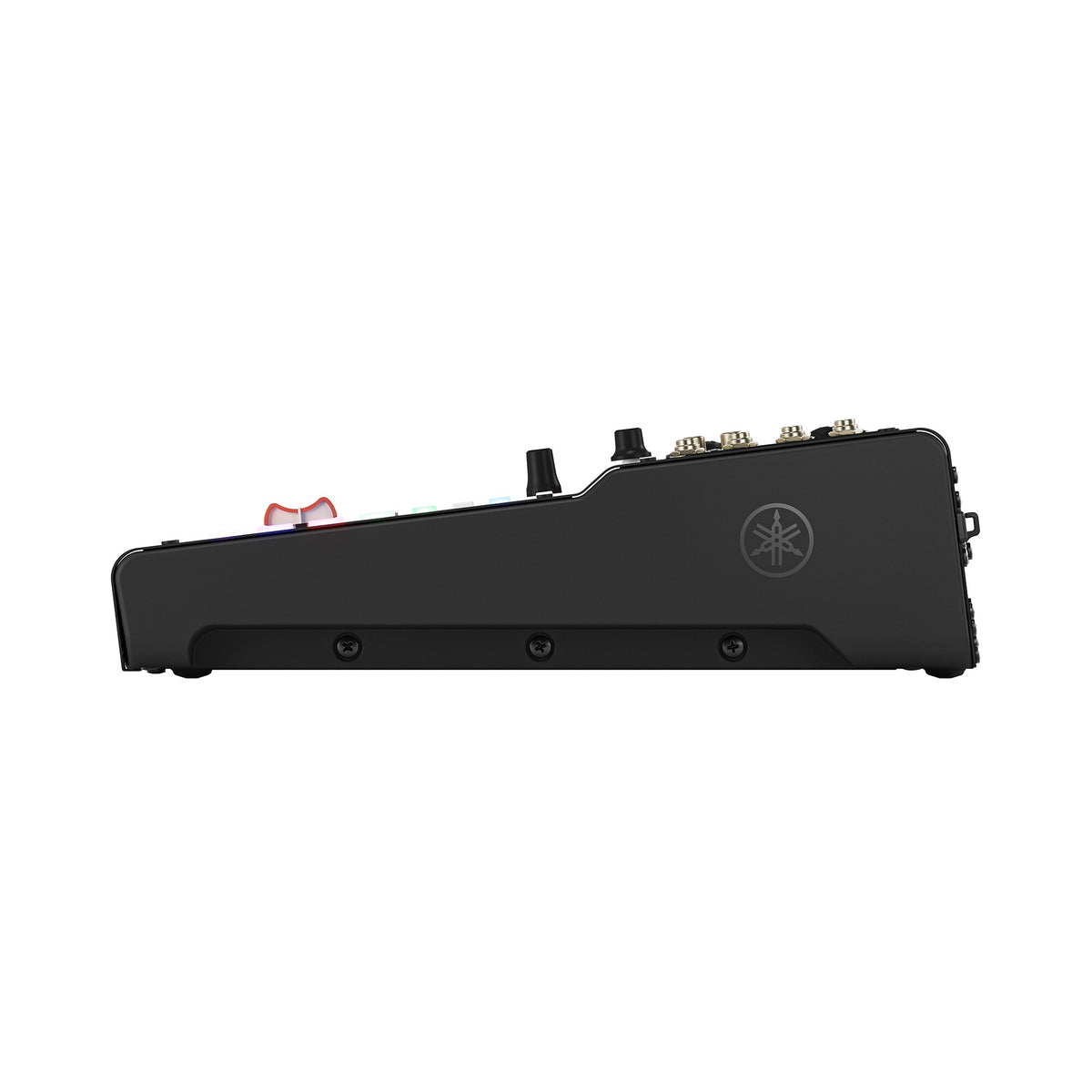

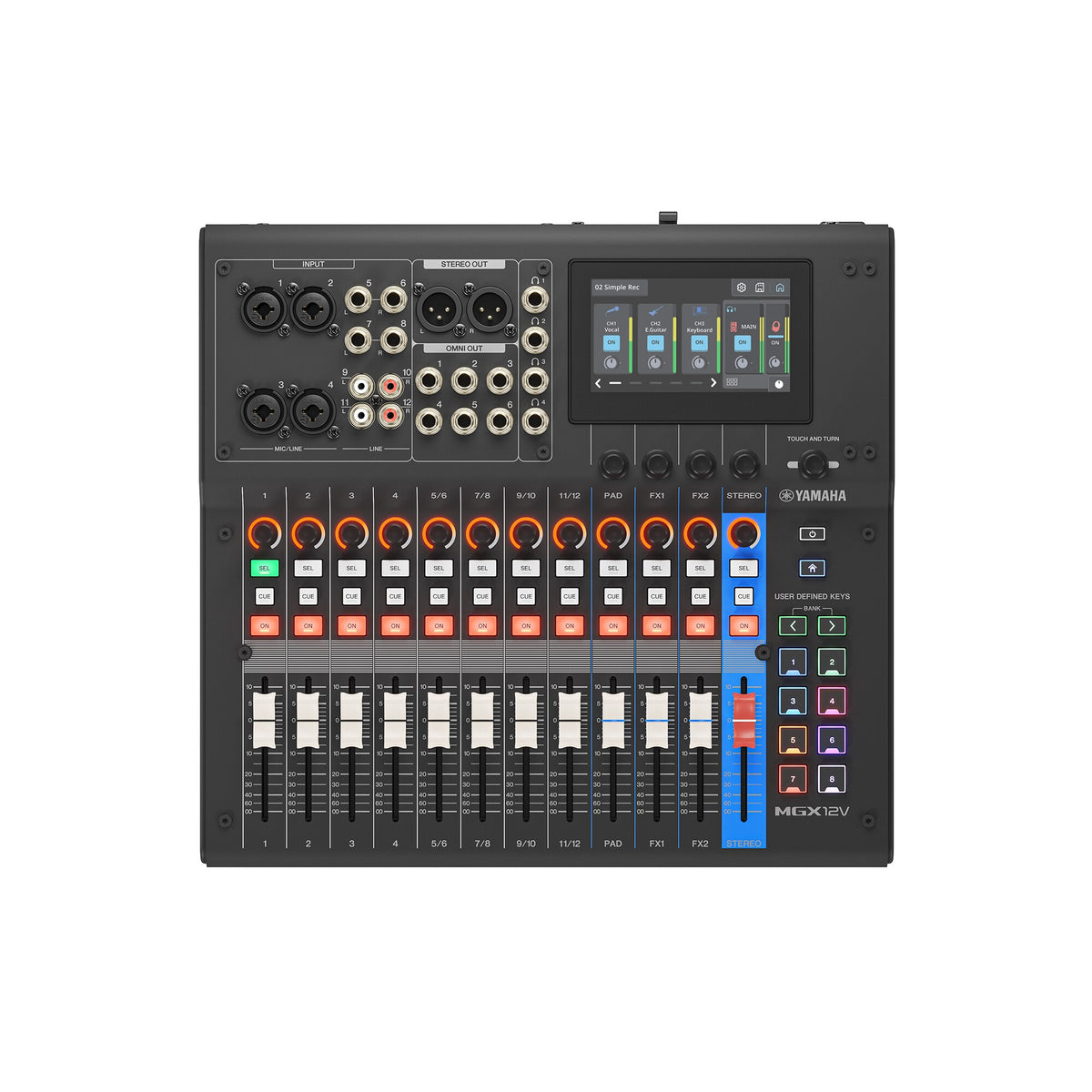

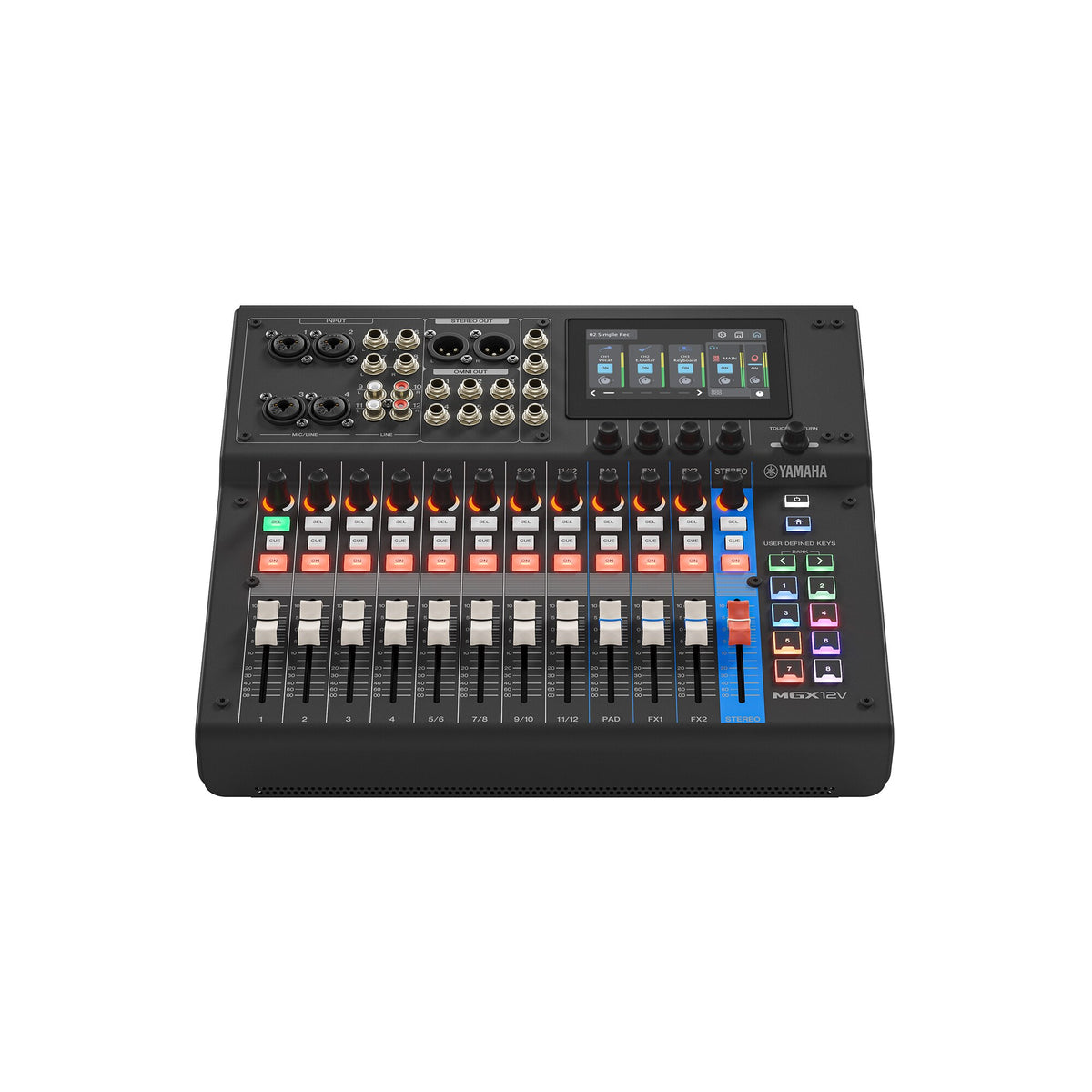

Yamaha MGX12V Digital Mixing Console With Video Interface in Black

The Yamaha MGX12V is a compact, versatile digital mixing console designed for live sound, podcasting, livestreaming, video production, and recording. Combining Yamaha's renowned audio quality with intuitive touchscreen control and an integrated HDMI video interface, it provides a powerful all-in-one solution for modern content creators and audio professionals.

Featuring four premium MGX microphone preamps, a 4.3-inch touchscreen, and an 11 + 1 fader layout, the MGX12V offers straightforward hands-on control over 18 input channels. Its mixing architecture includes four mono channels, four stereo channels, a dedicated Sound Pad, and two FX returns, supported by eight MIX buses and a stereo bus.

The integrated HDMI-to-USB interface allows you to capture audio and video while providing real-time HDMI passthrough, making it ideal for video podcasts, livestreams, gaming, and hybrid presentations. Support for video capture up to 4K/60fps makes it easy to integrate high-quality video into your production workflow.

The onboard DSP engine provides professional processing and effects, including Gate, Compressor, EQ, Reverb, Amp Simulator, Voice Changer, Ducker, and Multi-Band Compressor. Intelligent features such as Auto Gain, Clip Safe, Simple Mode, and Scene Recall help streamline setup and maintain consistent sound quality.

For recording and playback, the MGX12V offers 18-in/18-out USB MAIN connectivity at 32-bit/96kHz, a separate USB SUB connection, and up to 16-track recording directly to microSD. Bluetooth® 5.0, eight customisable sound pads, four headphone outputs, and extensive analogue connectivity make it an exceptionally flexible production hub in a compact 4.1kg design.

Key Features

• 18-channel digital mixing console with integrated video interface
• 4 premium MGX microphone preamps
• 11 + 1 non-motorised fader configuration
• 4.3-inch touchscreen with five control knobs
• Input channels: 4 mono, 4 stereo, 1 Sound Pad and 2 FX returns
• 8 MIX buses and 1 STEREO bus
• HDMI-to-USB audio/video capture with real-time HDMI passthrough
• Video capture and passthrough support up to 4K/60fps
• USB MAIN: 18 inputs / 18 outputs at 32-bit/96kHz
• USB SUB: 2 inputs / 2 outputs at 16-bit/48kHz
• Up to 16-track microSD recording and 2-track playback at up to 24-bit/96kHz
• Bluetooth® 5.0 audio input
• Built-in DSP with professional effects and processing
• Auto Gain, Clip Safe, Simple Mode and Scene Recall
• 8 customisable sound pads and 4 user-defined control knobs
• 4 headphone outputs for flexible monitoring
• Compact and portable design weighing 4.1kg

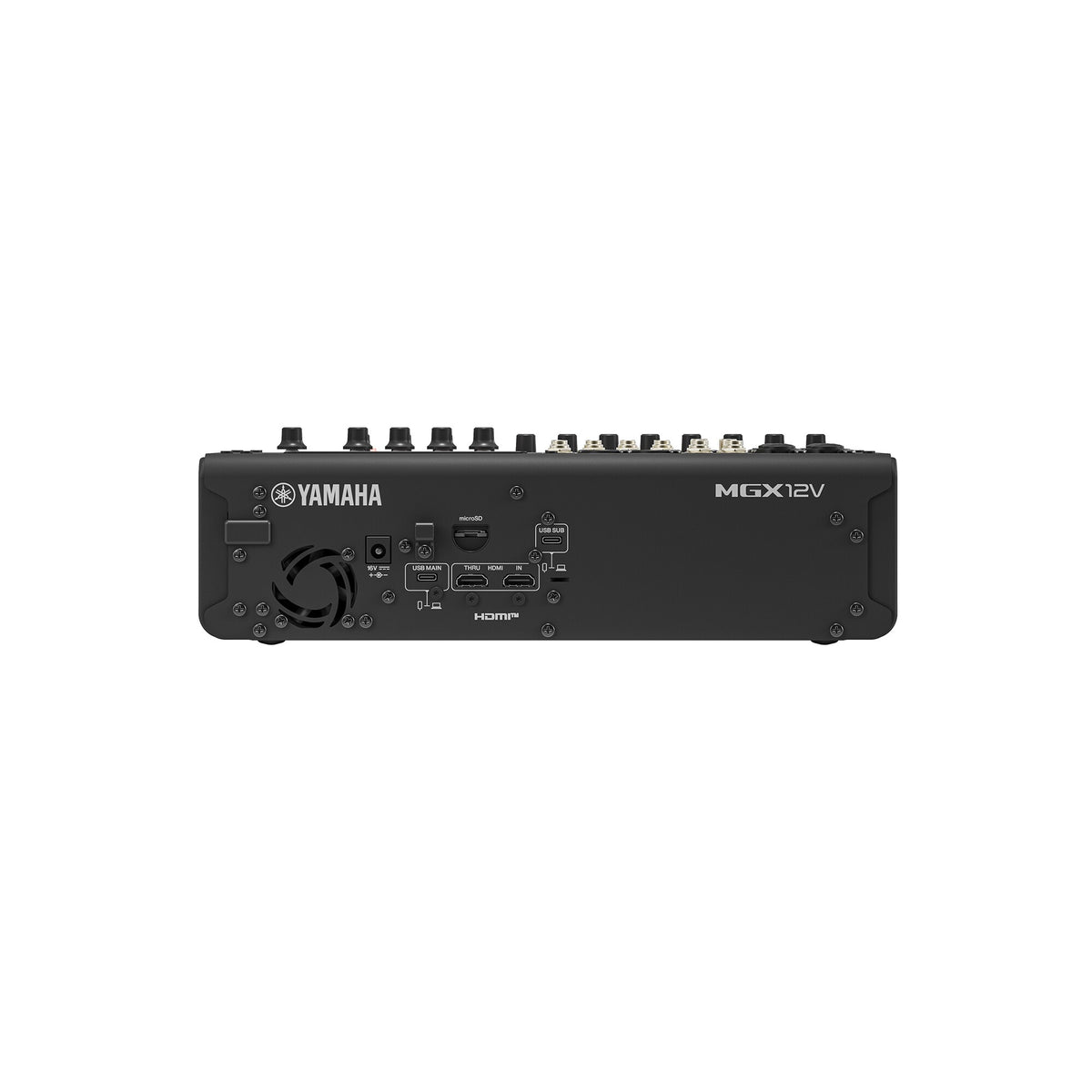

Connectivity

• 4 x XLR/TRS combo microphone/line inputs
• 4 x TRS line inputs
• 4 x RCA line inputs
• 2 x XLR outputs
• 6 x TRS outputs
• 4 x TRS headphone outputs
• 2 x USB Type-C connections (MAIN and SUB)
• HDMI input and passthrough
• microSD card slot
• Bluetooth® 5.0 audio input

Included Software & Accessories

• Steinberg Cubase AI licence
• Steinberg WaveLab Cast licence
• Steinberg Plus
• Basic FX Suite licence
• Yamaha PA-300C AC power adapter
• Start Guide and Safety Guide
