Product Information:
The streamlined Helix® LT boasts the same dual-SHARC® processing and professional-quality HX® Modeling found in the flagship Helix Floor and Helix Rack amp and effects processorsoutperforming all other products in its class. Features include a player-friendly interface with a large color LCD, capacitive-touch footswitches for easy editing, an onboard expression pedal, analog and digital I/O, and a USB audio interface.
Product Features:
- Pedal Type: Multi-FX Guitar Workstation
- Analog/Digital: Digital
- Presets: 1024 (8 setlists with 32 banks x 4 presets)
- Number of Effects: Over 200 effects (latest firmware), Up to 32 simultaneous FX (DSP permitting)
- Effects Types: Distortion, Dynamics, EQ, Modulation, Delay, Reverb, Pitch/Synth, Filter, Wah, Volume/Pan
- Amp Modeling: 80+ Amps, 60+ Cabinets, 3D Mic Placement (HX Edit 3.50 app)
- Impulse Response: Dual IR Block, 3rd Party IR Support, Store up to 128 IRs
- Looper: 60 seconds (mono full speed), 30 seconds (stereo full speed)

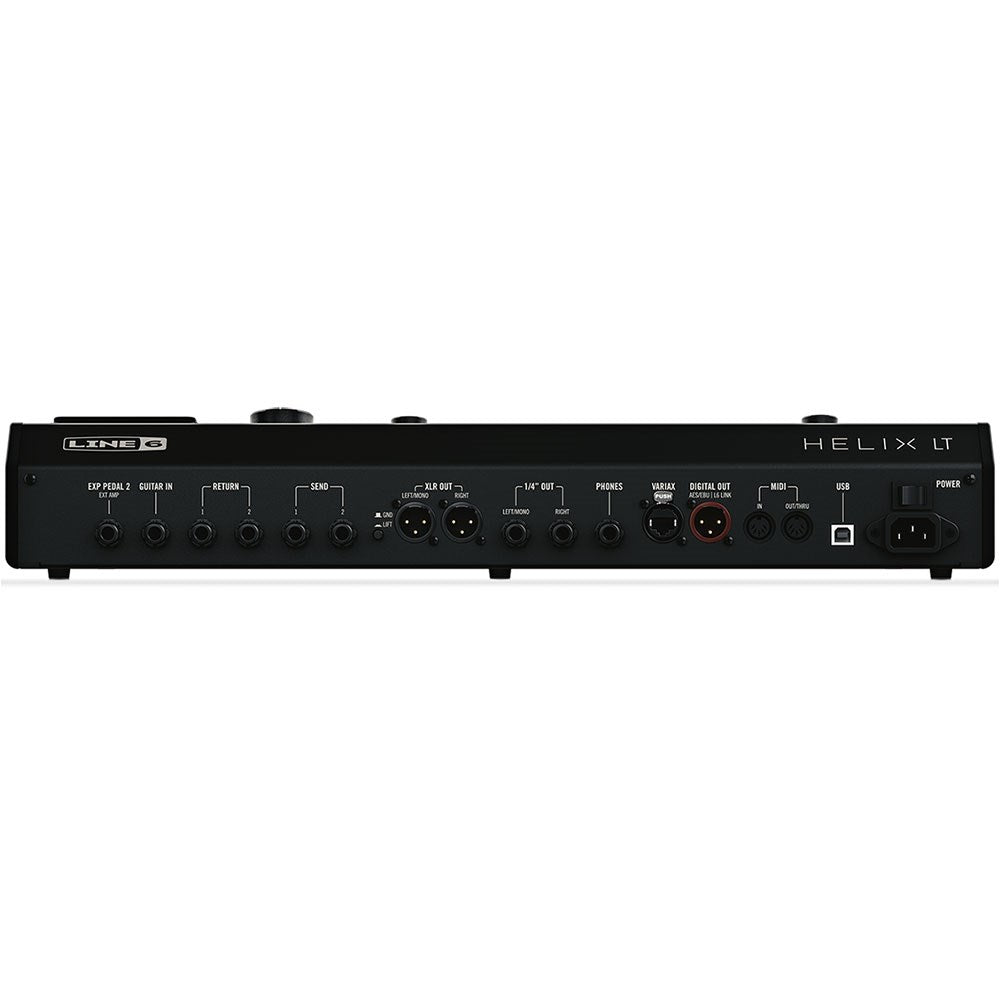

- Inputs: 1 x 1/4" (guitar), 2 x 1/4" (returns)
- Outputs: 2 x XLR (main out), 2 x 1/4" (main out), 2 x 1/4" (sends)
- Digital Outputs: 1 x XLR (AES/EBU, L6 link)
- MIDI I/O: In, Out/Thru
- USB: 1 x Type B
- Headphones: 1 x 1/4"
- Other I/O: 1 x RJ45 (Variax), 1 x 1/4" (expression2/external amp switch)
- Expression Control: Built-in Pedal
- Features: 450MHz SHARC DSP Processor
- Software: HX Editor (librarian, IR loader)
- Compatibility: OS X 10.10 or later, Windows 7 SP1 or later
- Power Source: Standard IEC AC cable
- Dimensions: Height: 3.61", Width: 20.86", Depth: 11.87"
- Weight: 12.5 lbs.
