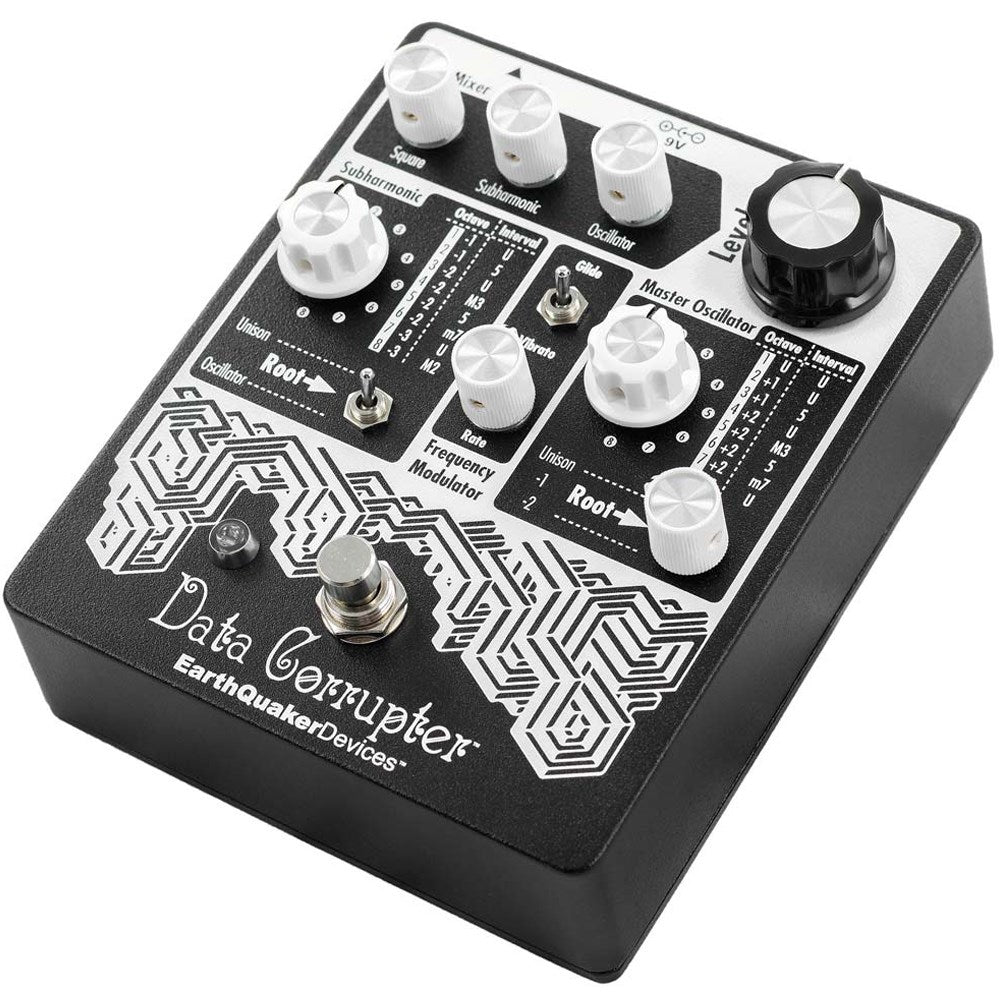

EarthQuaker Devices Data Corrupter Modulated Monophonic Harmonizing PLL Pedal

https://youtu.be/gPxZRD5gSGc

Product Information:

The Data Corrupter is a monophonic analog harmonizing PLL with modulation. It takes your input signal and brutally amplifies it into a crushing square wave fuzz tone that is then multiplied, divided and modulated to create a wild, yet repeatable, three-voice guitar synthesizer. The Master Oscillator is the central nervous system at the heart of the Data Corrupter’s cyberpunk hive mind. It feeds your input to the signal harvester in its original octave (Unison), one octave down (-1) or two octaves down (-2) for maximum compatibility with your preferred instrument and frequency register. Once you’ve chosen your input octave, then the Data Corrupter will perform its calculations and spit out an analog synthesized frequency, which can be pitch-bent for portamento or vibrato sounds by the Frequency Modulator! From there, you can blend in one of eight Subharmonic intervals up to three octaves below the input and mix in a square wave fuzz tone for maximum data corruption.

Product Features:

• Pedal Type: 3-voice Guitar PLL Harmony
• Analog/Digital: Analog
• Monophonic analog harmonizing three-voice guitar synthesizer

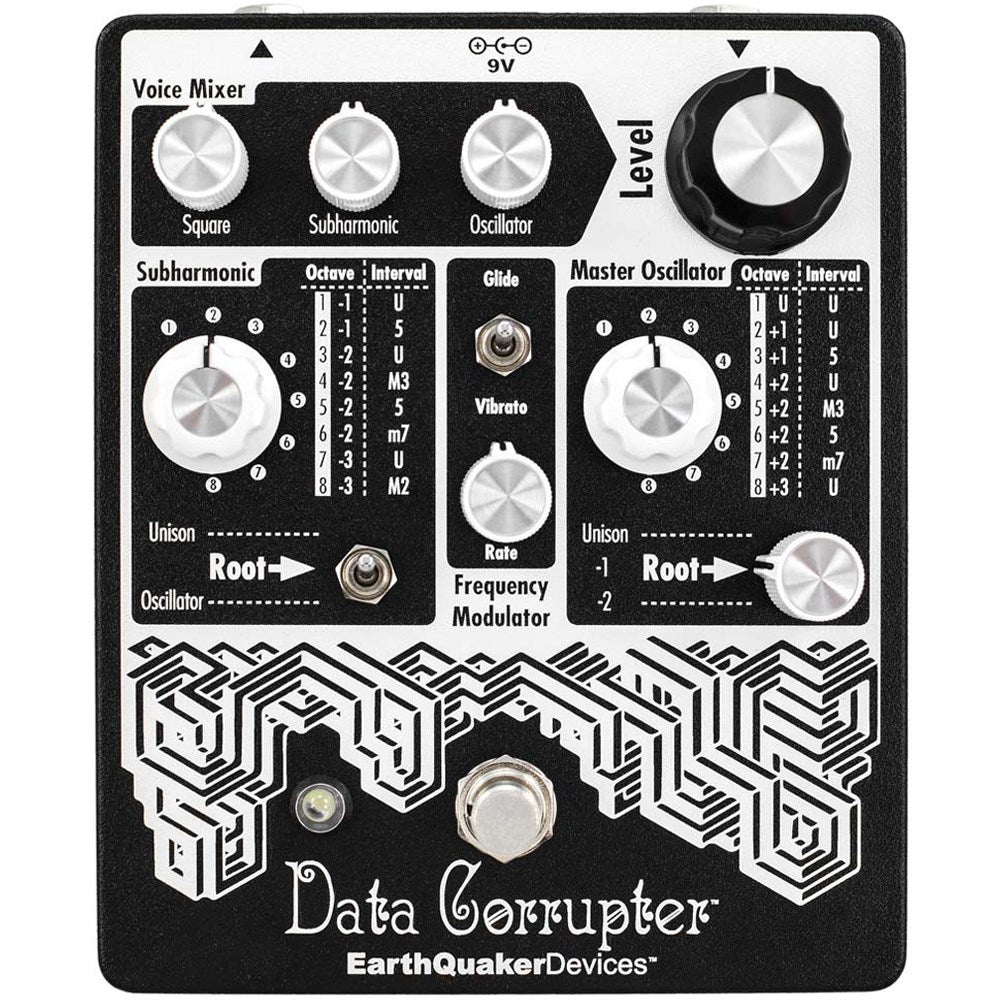

• Eight-position rotary switch for octave and/or interval selection
• Subharmonic channels for lower octave programs
• Glide and portamento-style effects with the Frequency Modulator
• Fuzzed-out square-wave blending with Voice Mixer
• True Bypass
• Power Source: 9V DC transformer isolated power supply required (sold separately)
• Current Draw: 25mA
• Input impedance: 1M
• Output impedance: 1K

For more information and specifications, please refer to the manufacturer’s website
