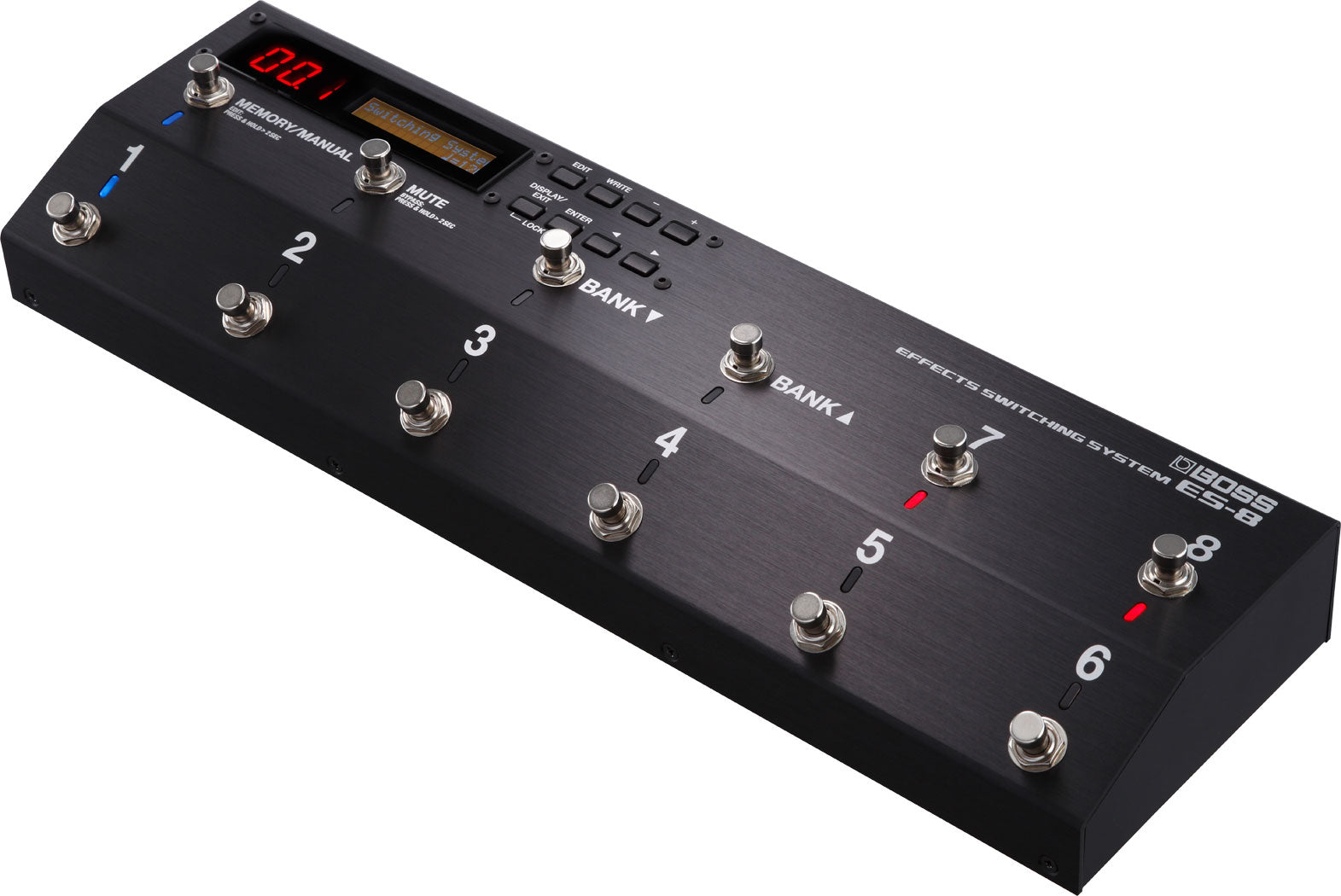

Boss ES8 Effects Switching System

Product Information:

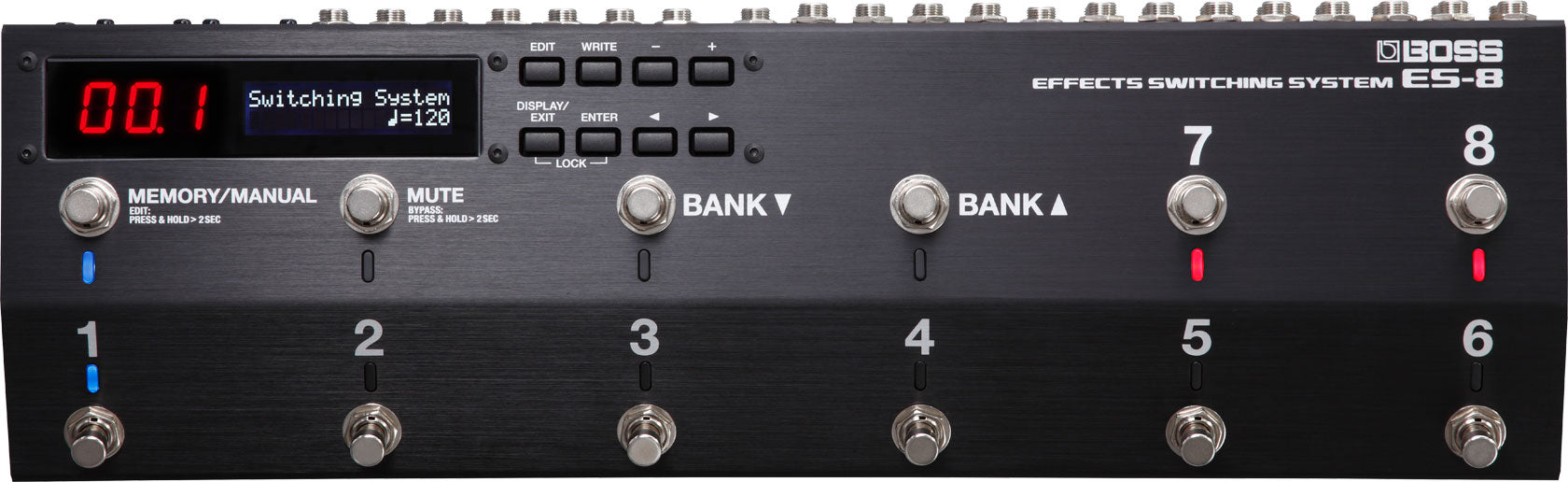

Give yourself flexibility and a high degree of musical freedom with the BOSS ES-8 effects switching system. The analogue circuit design of this switching system keeps your tones pure, and pedal function assignments that are completely customisable make it easy to call up your favourite effects. The routing flexibility of the ES-8 lets you easily rearrange the order of your chain of stompbox effects to create a vast array of combinations. The parallel chain function on this unit gives you access to additional effects combinations to truly make your sound your own. Input and output buffers on this switching system are easy to turn on and off to preserve your pure tones. Three TRS control output jacks, two TRS expression output jacks, MIDI capability and eight on-board effects loops give the ES-8 amazing connectivity. Onboard memory lets you easily store external control parameters such as patch delay time, and an LED display with seven segments lets you easily see your settings and effects choices at a glance.

Product Features:

• Type: Multi-effects Processor
• Warranty period: 5 Years
• Modes: Memory mode/Manual mode
• Patch Memory: 800
• Inputs: 2 x 1/4" (instrument), 1 x 1/4" (tuner in)
• Outputs: 2 x 1/4" (main out)
• Effects Loop: 6 x mono loops, 2 x stereo loop returns, 1 x volume loop
• MIDI I/O: In, Out/Thru

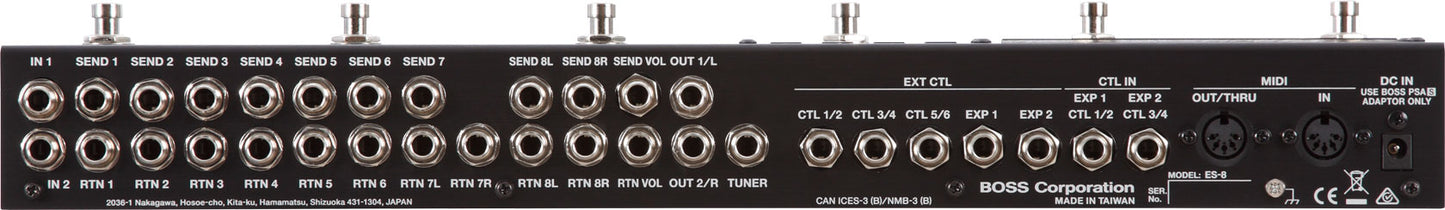

• Other I/O: 3 x 1/4" TRS (external control), 1 x 1/4" TRS (expression), 2 x 1/4" TRS (control/expression)
• True Bypass: Switchable buffered or true bypass
