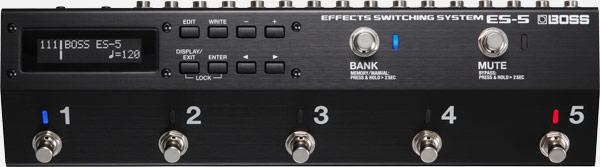

Boss ES-5 Effects Switching System

Product Information:

Based on the same concept and features as the flagship ES-8, the ES-5 is pared down to offer more practical and essential use options for typical guitarists and bassists, and is drastically reduced in size to fit ready-made, standard-size boards. The innovation in creativity of pedalboard systems made possible by the ES-8 has become more available and affordable. Expand your board just by one size and incorporate the ES-5, then you are in for a whole new world of musical expression, not just another utility tool. From this day on, the use of stompboxes will never be the same. 1.Programmable switching system with five loops 2.Analog circuit design to protect your pure tone 3.Unprecedented routing flexibility with the ability to change the routing order and create a parallel effect chain 4.External control parameters such as delay time can be saved for each patch 5.Buffers can be turned on/off individually for the input and output and stored in each patch; level variability for output buffer 6.Highly reliable footswitches with switch-noise mute capability 7.Backlit LCD display shows detailed information at a glance 8.200 patch memories provide unmatched capability for actively gigging musicians 9.Completely customizable pedal function assignments 10.Pro-level practicality and creativity in a compact body

Product Features:

• Modes: Offers Memory mode and Manual mode for versatile control.
• Loops: Equipped with 5 loops for signal routing and effects control.
• Patch Memory: Provides 200 patch memory slots for storing your configurations.
• Input and Output Levels: Accepts input levels from -10 dBu to +13 dBu and offers nominal output levels of -10 dBu.
• Input and Output Impedance: Input impedance of 1 M ohm and output impedance of 1 k ohm (with Mixer on).
• Controls: Features NUMBER 1-5 switch, BANK switch, MUTE switch, and various editing buttons for easy operation.
• Display: Includes a 16-character, 2-line backlit LCD display for clear visual feedback.
• Connectors: Offers a variety of 1/4-inch phone and TRS phone jacks, as well as MIDI connectors (IN, OUT/THRU) for connectivity.
• Power Supply: Operates with an AC adaptor (included) with a low current draw of 125 mA.
• Accessories: Comes with an AC adaptor, rubber foot x 4, owner's manual, and a safety leaflet.
• Dimensions: Compact and lightweight design with dimensions of 337 mm (width) x 97 mm (depth) x 68 mm (height) and a weight of 1.3 kg (2 lbs 14 oz).
